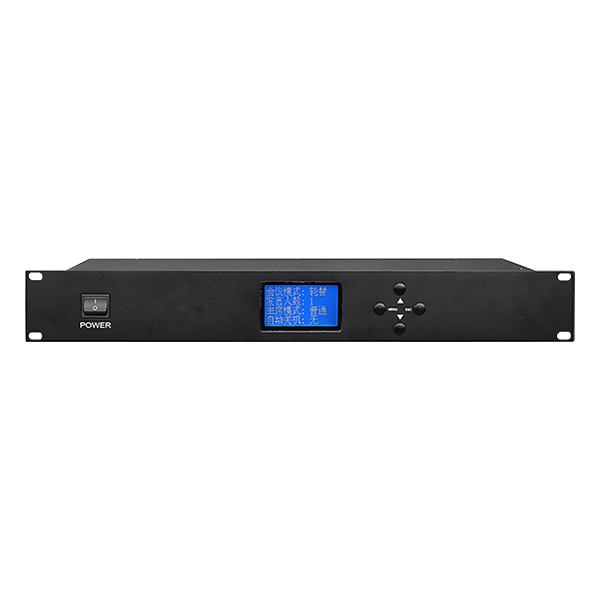

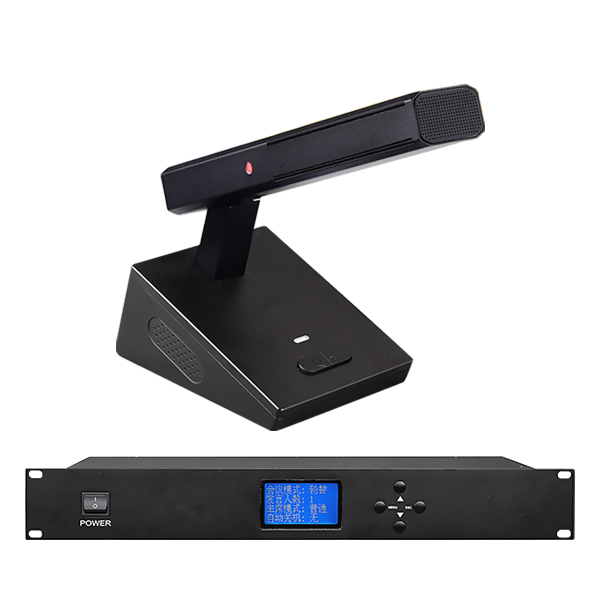

Host Features Overview

* The digital control and sound signals connecting the main control machine and the conference system unit are transmitted by the same cable (six cores).

* It can be operated independently or with an external computer combined with software to achieve a variety of conference management functions (conference mode or operation: designated speech, free speech and first-in-first-out speech, etc., and can be used in conjunction with the video tracking host to achieve video tracking Function)

* Built-in power supply, output power of 450W, can drive more than 50 groups of speaking devices, just add expansion devices to drive more than 200 groups of speaking devices.

* Has four groups of 6P-DIN sockets for system connection. (or optional network cable interface)

* With audio output interface, there are balanced and unbalanced.

* Built-in volume adjustment processor, can adjust the high and low bass.

* The system volume is independently adjustable.

* Has an AUX input.

* The automatic shutdown function of the attendance unit is optional.

* There are four mode function setting buttons and LCD display on the panel.

* Support a variety of conference modes such as: free discussion, first-in first-out, restricted speech, etc.

* It can provide data communication port for video central processing unit.

* Frequency response: 50—16K SNR: 90DB Distortion: <0.2% 1KHZ

* Output impedance: 600Ω

* Maximum power consumption: 250W

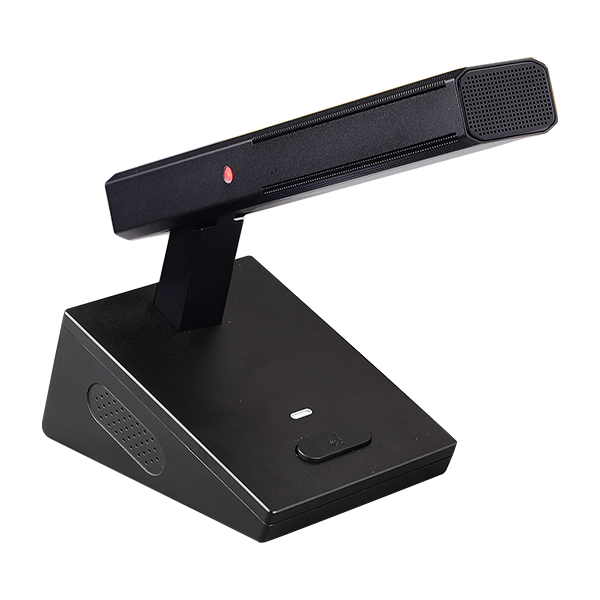

Chairman Model: TS-CF3

* Frequency Response: 60-16KHz

* Sensitivity: -42dB±2dB

* Reference speaking distance: 20-100cm

* The microphone has a speaking key and indicator light, which can control/indicate the state of the machine

* With the chairman's priority control button, it can terminate the working status of all speaking representatives' microphones

* The number of chairman units in the system is not limited and can be placed anywhere in the loop

* The chairman unit in the system is not restricted by restricted functions

* Wrap-around condenser microphone boom with speaking indicator halo

* The unit is powered by the system host, and the input voltage of 24V is within the safe range

* With automatic video tracking

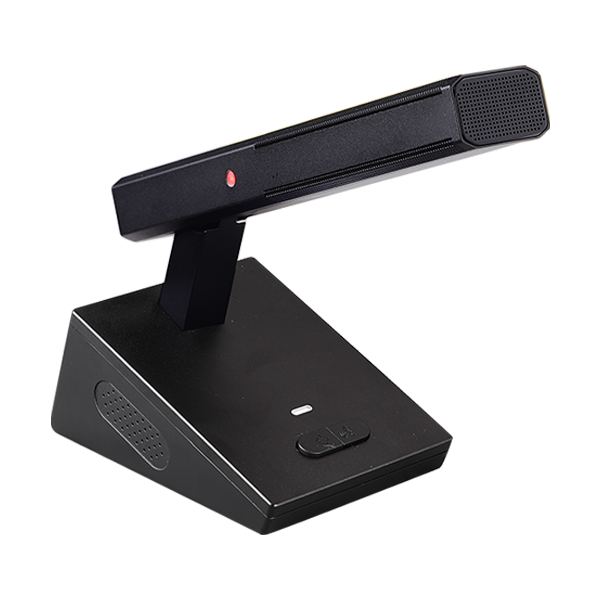

Representative model: TS-DF3

* Frequency Response: 60-16KHz

* Sensitivity: -42dB±2dB

* Reference speaking distance: 20-100cm

* The microphone has a speaking key and indicator light, which can control/indicate the state of the machine

* Wrap-around condenser microphone boom with speaking indicator halo

* The unit is powered by the system host, and the input voltage of 24V is within the safe range

* With automatic video tracking

* Hand-in-hand connection between units

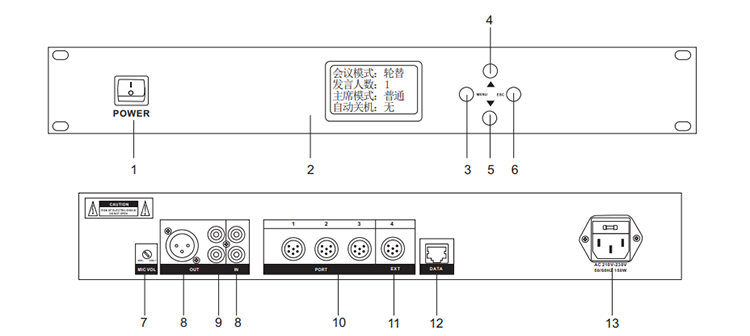

Instructions

1: (POWER) Power switch

2: LCD display

3: MENU menu key

4: Up button

5: Down key

6: ESC key

7: System total output volume adjustment potentiometer

8: (AUX IN) AUX input socket (phone coupler. DVD, etc.)

9: System line unbalanced output (LINE), system recording output (REC), balanced signal output (BAL)

10: Unit terminal block

11: Extended interface

12: (DATA) data interface (connect to video tracking host) 13: power socket

14: Fuse socket (use 10A fuse)

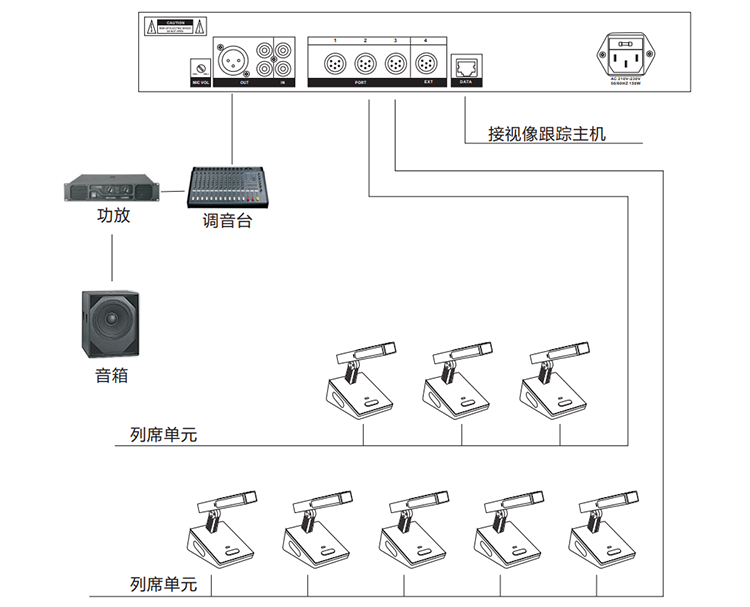

System Connection Reference Diagram
